Our hoods are made of 3/4” thick hardwood veneer plywood. For painted finishes, we use maple, for stained finishes we offer maple or oak.
The hood apron is made of walnut veneer plywood, providing a beautiful design accent.
What are the interior dimensions of the hood?
Our hoods are made of 3/4″ hardwood veneer plywood. To determine the interior dimensions, subtract 1.5″ from the size. For instance, for a 36″ wide hood the interior width would be 34.5″ wide. The standard interior depth is 18″, with the option to increase the depth to 19-3/8", 20-1/2″ or 22-1/2″. The apron height is 8-1/4″ tall.
Will my blower unit work with the hood?
To determine if your blower unit will fit you must look at the interior dimensions of the hood. We use 3/4″ thick material for the construction of the hoods. To determine the interior width, you would look at the size hood you are interested in and subtract 1.5″. For example, for a 48″ wide hood the interior width would be 46.5″ wide. Then you must determine the interior depth. The standard interior depth is 18″, with the option to increase the depth to 19-3/8", 20-1/2″ or 22-1/2″. Make sure to select the option that will best accommodate your insert. You must also look at height. The apron is 8-1/4″ tall. If your insert is taller than this, reach out to us directly so we can help.What height hood do I need for my ceiling height?
We recommend 30″-36″ between your cooktop and the bottom of the hood. Typically, if you have 8′ ceilings we would recommend a 30″ tall hood. With 9′ ceilings we recommend a 36″ tall hood and with 10′ ceilings, we recommend a 48″ tall hood
Is the hood trimmable?
Yes, this hood is trimmable by up to 6″. You can do this yourself, or we can cut it down before we ship it for an additional charge. Please note that you cannot cut the hoods by more than 6″ as it will threaten the structural integrity of the hoods.
Trade Wind Product Downloads

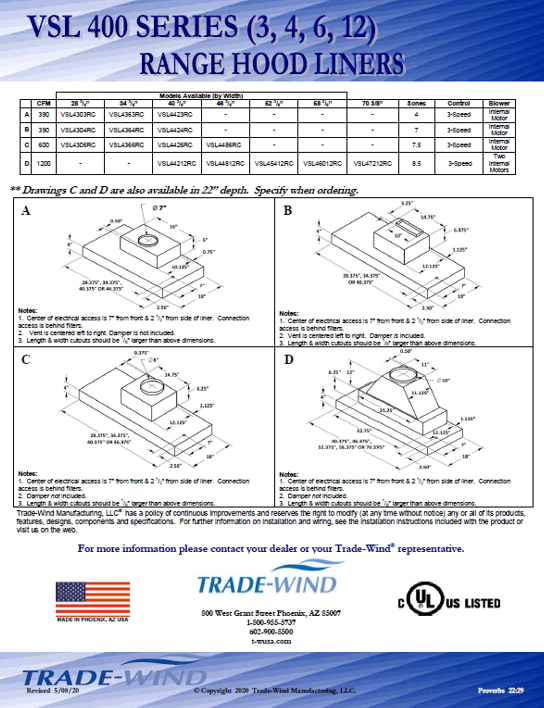

PDF Trade Wind Specifications: Download Specs
PDF Trade Wind Installation Instructions: Download Install
Hood Installation Instructions
PDF Wood Range Hood Installation Instructions: Download Install
